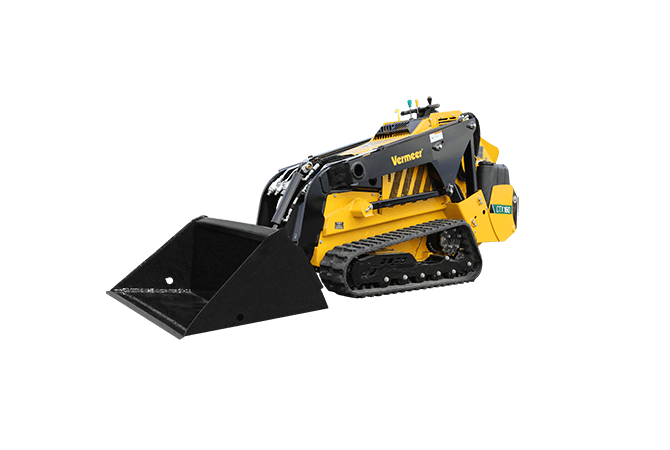

Vermeer CTX160 Mini Skid Steer
The Vermeer CTX160 mini skid steer delivers powerful performance in a compact footprint, making it ideal for tight jobsites and residential projects. With a 40-hp turbocharged diesel engine and a 1,600 lb rated operating capacity, it handles demanding lifting, digging, and material handling tasks with ease. Its dual hydraulic system powers a wide variety of attachments, enhancing versatility for landscaping, utility installation, and tree care. Built for operator comfort and long-term durability, the CTX160 is a reliable, high-productivity solution for professionals who need maximum capability in a small package.
Weight: 3850.0 lbs (w/o bucket)
Width: 42 in
SIZE
Height: 59 in
Length: 92.5 in (w/o bucket)
AVAILABILITY
Available in all areas.
Available weekly, monthly, or quarterly.
Size & Availablility
Vermeer CTX160 Mini Skid Steer
Key Features
ENGINE FUEL
Diesel
ENGINE
Kohler KDI 1903
HORSEPOWER
40hp
HYDRAULIC SYSTEM
Hydraulic Aux System Flow is 16.7gpm
Hydraulic System Low Flow is 9.4 gpm
Hydraulic System Pressure is 3045 psi
High Lifting Capacity in a Compact Size
The CTX160 delivers an impressive 1,600 lb (725.7 kg) rated operating capacity while maintaining a slim 42-inch wide frame. This allows operators to perform heavy-duty lifting, loading, and material handling even in tight access areas like residential yards or crowded jobsites. Its vertical lift design also provides a hinge pin height of 88.75 inches, making it easier to load trucks, trailers, and hoppers.
Powerful Dual Hydraulic System
Equipped with a dual hydraulic system, the CTX160 offers both high flow (16.7 gpm) and low flow (9.4 gpm) hydraulic circuits, delivering flexibility for a wide range of attachments. This allows operators to efficiently power demanding tools like trenchers, augers, grapples, and stump grinders without sacrificing control or precision. The hydraulic versatility helps maximize productivity across multiple applications and industries.
Operator Comfort and Stability
The CTX160 is designed with a chariot-style operator station and an operator presence system that enhances comfort and control during extended operation. Its low ground pressure (4.7 psi) provides excellent stability and minimizes surface damage, especially on turf or sensitive terrain. This combination ensures safer, more efficient operation even in challenging site conditions.
Rent This Mini Skid Steer Today!
Mini Skid Steer Specifications
The key to getting the job done right with a Mini Skid Steer is choosing the right equipment for your specific needs. Below, you'll find the specifications for the Vermeer CTX160 Mini Skid Steer, ensuring you get the power, stability, and versatility required for a wide range of tasks. This tool is available for rent on a weekly or monthly basis—contact us for pricing. If you're working on construction sites, landscaping, or handling materials on tough, uneven terrain, the Vermeer CTX160 is the perfect fit. Its powerful performance and compact design make it ideal for tight spaces, while its superior traction ensures you can tackle challenging conditions like mud and rough ground. Whether you’re working in urban areas, residential properties, or confined job sites, the Vermeer CTX160 is a reliable choice for a wide variety of projects.
| Engine | |
|---|---|
| Gross Horsepower | 40 hp |
| Make/Model | Kohler KDI 1903 |
| Fuel type | Diesel |
| Fuel tank capacity | 14.5 gal (54.9 L) |
| Cooling system | Liquid |
| Max angle of inclination | 221 lb/ft |
| Hydraulic System | |
| Hydraulic auxiliary system high flow | 16.7 gpm (63.2 L/min) |
| Hydraulic system low flow | 9.4 gpm (35.6 L/min) |
| Hydraulic system pressure: | 3045 psi (209.9 bar) |
| Ground pressure | 4.7 psi (.32 bar) |
| Hydraulic tank capacity | 30 gal/min |
| Operating Specifications | |
| Steering | Dual-axis, pilot-operated joystick |
| Lift | Dual-axis, common bucket lever |
| Curl | Dual-axis, common bucket lever |
| General | |
| Ground clearance | 6.75 in (17.1 cm) |
Why Rent or Lease the Vermeer CTX160 Mini Skid Steer?
Versatile for Multiple Job Types
The CTX160 can handle landscaping, tree care, utility installation, demolition, and snow removal with a wide range of compatible attachments.
High Power in Tight Spaces
With a 40-hp diesel engine and compact 42-inch width, it delivers heavy-duty performance even in confined residential or urban work areas.
Reduce Equipment Ownership Costs
Renting or leasing avoids the upfront purchase cost and long-term maintenance expenses while still providing access to top-tier equipment.
Easy to Operate and Comfortable
The chariot-style platform, operator presence system, and intuitive controls make it easy for operators of varying skill levels to safely and efficiently run the machine
Maximize Productivity with Hydraulic Flexibility
Its dual hydraulic system allows quick switching between standard and high-flow attachments, keeping projects moving without delays.
